A234 Wp5 Alloy Steel Elbow, 90 Degree LR, Cold Drawn Seamless Carbon Steel
| Tempat asal | Cina |
|---|---|
| Nama merek | METAL |
| Sertifikasi | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model | Siku Nikel Tembaga |
| Kuantitas min Order | 1 buah |
| Harga | Depending on quantity |
| Kemasan rincian | Ekspor Standar Kemasan Laut |
| Waktu pengiriman | 25-30 hari tergantung pada kuantitas |
| Syarat-syarat pembayaran | T/T, L/C, Western Union |
| Menyediakan kemampuan | 3.0000pcs per bulan |
Detail produk
| Nama Produk | Siku Nikel Tembaga | Peringkat Tekanan | 150PSI |
|---|---|---|---|
| Ketahanan korosi | Ketahanan tinggi terhadap korosi air laut | Teknik | Tertempa |
| Ukuran | 1 | Derajat | 45,90,180 |
| Ketebalan | SCH20 | Kisaran suhu | -196°C hingga 400°C |
| Bahan | Paduan Tembaga Nikel (misalnya CuNi 70/30 atau CuNi 90/10) | Koneksi akhir | Las Butt, Las Soket, Berulir |
| Jaminan | 1 Tahun | Sudut | 45 derajat atau 90 derajat |
| Perawatan Permukaan | Dipoles | Rentang ukuran | 1/2 inci hingga 24 inci |
| Menyelesaikan | Halus, Acar dan Pasif | Tekanan | Hingga 3000 psi (bervariasi berdasarkan ukuran dan ketebalan) |
| Menyoroti | 90 degree alloy steel elbow,cold drawn seamless carbon steel elbow,LR alloy steel pipe fitting |
||
Deskripsi Produk

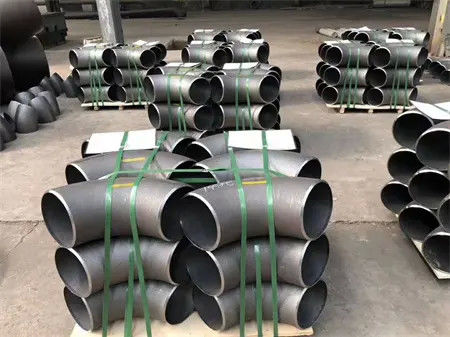

A234 Wp5 Alloy Steel Elbow, 90 Degree LR, Cold Drawn Seamless Carbon Steel
Our A234 Wp5 alloy steel pipe fittings are manufactured in strict accordance with ASTM A234 standard, which is widely recognized in the global industrial field. The 90-degree long radius (LR) elbow is made of high-quality Wp5 alloy steel, with cold drawn seamless processing technology, ensuring the integrity and stability of the fitting.
The elbow adopts a 90-degree angle design, which is suitable for changing the direction of the pipeline in industrial fluid transmission. It is made of cold drawn seamless carbon steel, which has excellent pressure-bearing capacity and corrosion resistance, and can adapt to various harsh industrial working environments.
Each Wp5 alloy steel elbow has passed strict quality inspection, including material composition detection and pressure resistance test, to ensure that it meets the use requirements of industrial pipelines. It is widely used in petrochemical, chemical, and industrial pipeline systems, providing a reliable and durable connection solution for fluid transmission.
Material Grade:
| Material Designation | Corresponding Material Symbol | ||||
| ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 | |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| — | — | — | — | B7 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
| Boric Brass | — | — | — | — | Hsn70-1B |
| — | — | — | — | Hsn70-1 AB | |
| Arsenical Brass | — | CZ126 | — | — | H68A |
| Brass Tube | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 | H65/H63 |
Specifications
-
European Standard
-
10 bar & 14 bar
-
90/10 CuNi
-
DIN 86088, 86089 & 86090
-
Our copper nickel fittings are CuNi elbows, popular for superior corrosion resistance, high tensile strength, excellent erosion resistance and good machining properties. DIN 86090 is made from the best grade of CuNi 90/10 or CuNi 70/30 material, with an accurate balance of the chemical composition.DIN 86090 long radius elbow and DIN 86090 short radius elbow.
Dimensions : DIN 86090
Size : 1/2” to 24”,DN15-DN500
Type : Seamless / Welded
Pressure rate:10bar, 14bar
Deg:30,45,60,180
Grades : Copper Nickel 90/10 (C70600 ), CuNi10Fe1.6Mn, CuNi 90/10, 7060X
1. Pipe fittings Dimension Per DIN 86090
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
Copper Nickel C70600 is also known as Copper Nickel 90/10 because it is made up of 10% nickel or as ASTM B111 and ASME SB111. C70600 is known for its moderate strength, weldability, and formability. The inclusion of controlled quantities of iron and manganese also give the 90/10 alloy an extraordinary resistance to general corrosion and stress cracking, as well as to erosion and impingement due to turbulent water containing air bubbles and silt flowing at high velocities.
Application:
- Marine environments, power generation, offshore, oil & gas and defence sectors
- Drawn copper nickel tube
- Combines cold and hot working properties
- Highest degree of seawater corrosion and erosion
- Distillation and desalination plants
- Marine, coolers
- Heat exchanger
