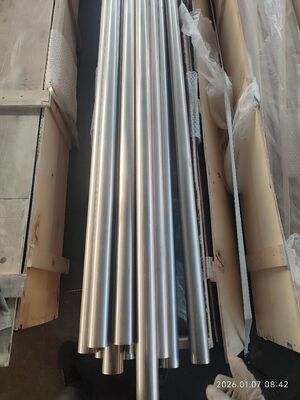

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger

  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
Tempat asal Shanghai, Tiongkok
Nama merek TOBO
Sertifikasi ISO/TUV/SGS
Nomor model Pipa Tembaga Nikel
Kuantitas min Order 1 buah
Harga Bisa dinegosiasikan
Kemasan rincian Paket pengiriman standar
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran T/T, Western Union
Menyediakan kemampuan 10Ton/Bulan
Detail produk
Nama Produk C71500 Copper Nickel Seamless Tubing, Presisi untuk Penukar Panas Penggunaan dekorasi konstruksi
Kekuatan hasil Tinggi Koneksi Pengelasan
Peringkat Suhu 400°F kemampuan mesin Bagus
Metode bergabung Mematri, mengelas, menyolder Teknik Ditarik Dingin, Digulung Panas
Produk Pipa Tembaga Nikel Teknik Pengecoran
Kisaran diameter 1/2 inci hingga 24 inci Komposisi bahan Paduan Tembaga-Nikel (umumnya 90/10 atau 70/30 Cu-Ni)
Aplikasi AC atau Kulkas Ukuran Disesuaikan
Ketebalan dinding Jadwal 10 hingga Jadwal 40 Pengiriman menurut kuantitas
Tinggalkan pesan
Deskripsi Produk

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger



1.Product Introduction



Copper nickel pipe is a high‑performance alloy tube manufactured from Cu‑Ni systems, primarily grades 90/10 (C70600) and 70/30 (C71500), with controlled additions of iron and manganese. Available in seamless and welded forms, it complies with ASTM B466, ASTM B111, ASME SB111, EN 12451 and JIS H3300. It is the preferred material for seawater and corrosive fluid handling.



2.Product Advantages

  • Outstanding resistance to seawater, brackish water, and brine corrosion.

  • Natural biofouling protection – copper ions inhibit marine organism attachment.

  • High resistance to erosion‑corrosion and impingement attack.

  • Excellent weldability, formability, and thermal conductivity.

  • Exceptional longevity – proven service life over 50 years in marine systems.

  • Immune to chloride stress‑corrosion cracking (SCC).

  • Lower weight than steel for equivalent pressure ratings.

  • More economical than titanium or high‑nickel alloys.



3.Product Applications

  • Shipbuilding & offshore – seawater cooling, ballast, fire‑fighting, and sanitary piping.

  • Oil & gas platforms – topside process lines, subsea umbilicals, and riser cladding.

  • Desalination – evaporator tubes and brine heaters.

  • Power generation – condenser tubes and cooling water circuits.

  • Industrial heat exchangers – chemical, petrochemical, and food processing.

  • Marine renewable energy – tidal/wave generator cooling systems.

  • Aquaculture – seawater supply and fish cage structures.

  • Automotive & aerospace – brake lines, power steering tubes, and aircraft ducting.

​C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger 0

4.Key Product Parameters

Parameter 90/10 (C70600) 70/30 (C71500)
Composition (wt%) Cu ≥88.6, Ni 10, Fe 1.4, Mn 0.8 Cu ~70, Ni ~30, Fe 0.6, Mn 0.5
Tensile Strength (MPa) 303 – 414 350 (typical)
Yield Strength Rp0.2 (MPa) 110 – 393 (temper dependent) 120 (typical)
Elongation (%) 42 35
Elastic Modulus (GPa) 140 140
Thermal Conductivity (W/m·K) 50 29
Density (g/cm³) 8.90 8.95
Melting Range (°C) 1080 – 1120 1170 – 1240
OD Range – Seamless (mm) 6 – 159 6 – 159
OD Range – Welded (mm) up to 419 up to 419
Wall Thickness – Seamless (mm) 0.5 – 8.0 0.5 – 8.0
Wall Thickness – Welded (mm) up to 10.0 up to 10.0
Standard Lengths 6 m, 12 m, or custom 6 m, 12 m, or custom



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
